Stellant® CWS offers advanced features with a patient-focused design.
Dual-flow injection enhances image quality outcomes in complex CTA and cardiac CT procedures.
Hãng sản xuất:

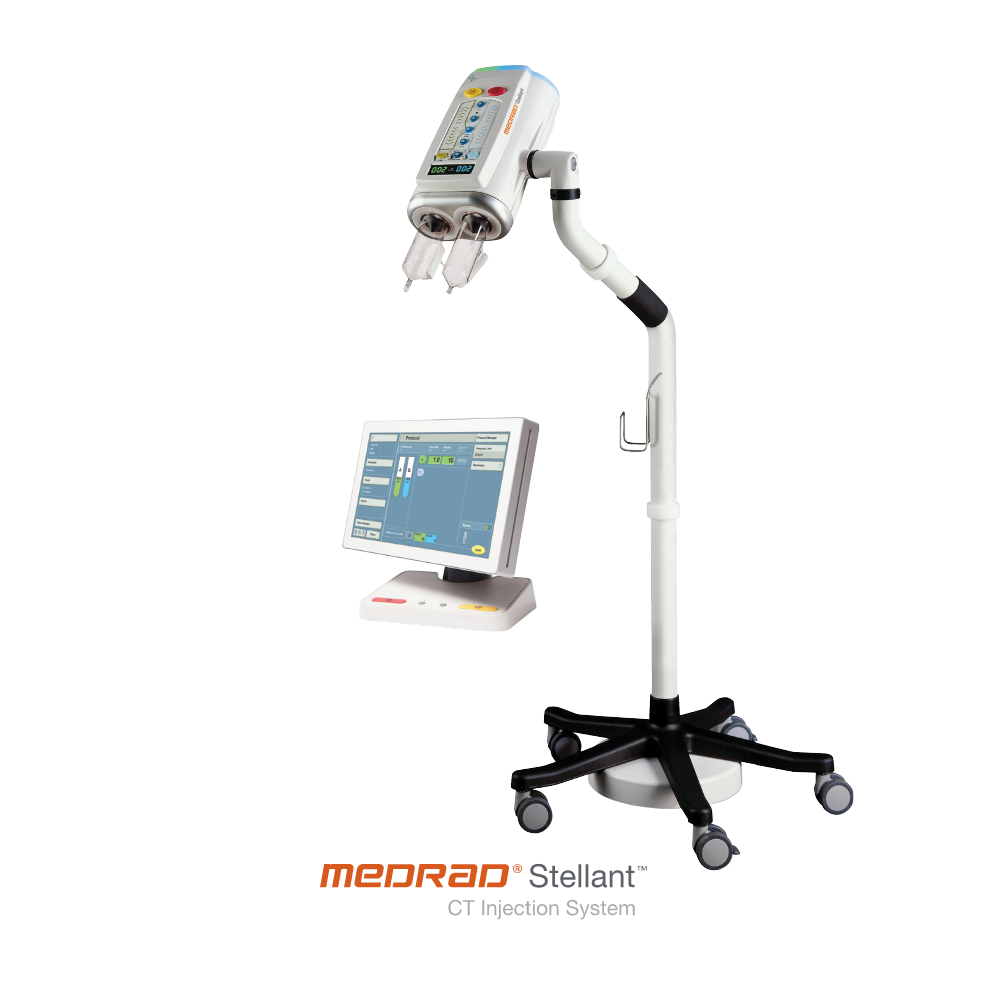

MEDRAD Stellant CT Injection System with Certegra Workstation
Product Description
I/ General Configuration
• Main unit and standard accessories: 01 system
• Dual-syringe injector head: 01 unit
• Display control unit: 01 unit
• Power supply and power cable: 01 unit
• Syringe warmer: 01 unit
• Ceiling-mounted arm: 01 unit (OR pedestal: 01 unit)
• Wireless control display: 01 unit
• User manual in English and Vietnamese: 01 unit
• 200 mL syringe kit: 03 uint
II/ Technical Specifications
Specifications:
• Intravenous contrast injection for CT imaging, dual-syringe type
• Injection rate setting: ≤0.1 to ≥10 mL/sec, 0.1 mL/sec increments
• Injection volume setting: ≤1 mL up to maximum capacity, 1 mL increments
• Injection volume accuracy: ≤ ±2%
• Maximum pressure: ≥325 PSI
• Automatic phase delay: ≤1 to ≥900 seconds, 1 second increments
• Manual phase delay: ≥1200 seconds
• Programmable injection phases: ≥6 phases
• Injection protocol memory: ≥250 programs
• Integrated heat maintainer at 35°C ±5°C
• Function for mixing contrast media and saline
