Dual-syringe contrast injector system with a compact, mobile design, wireless connectivity, and simplicity.
Touchscreen display with an intuitive, user-friendly interface.
Convenient and easy to install with a wireless control panel.
Hãng sản xuất:

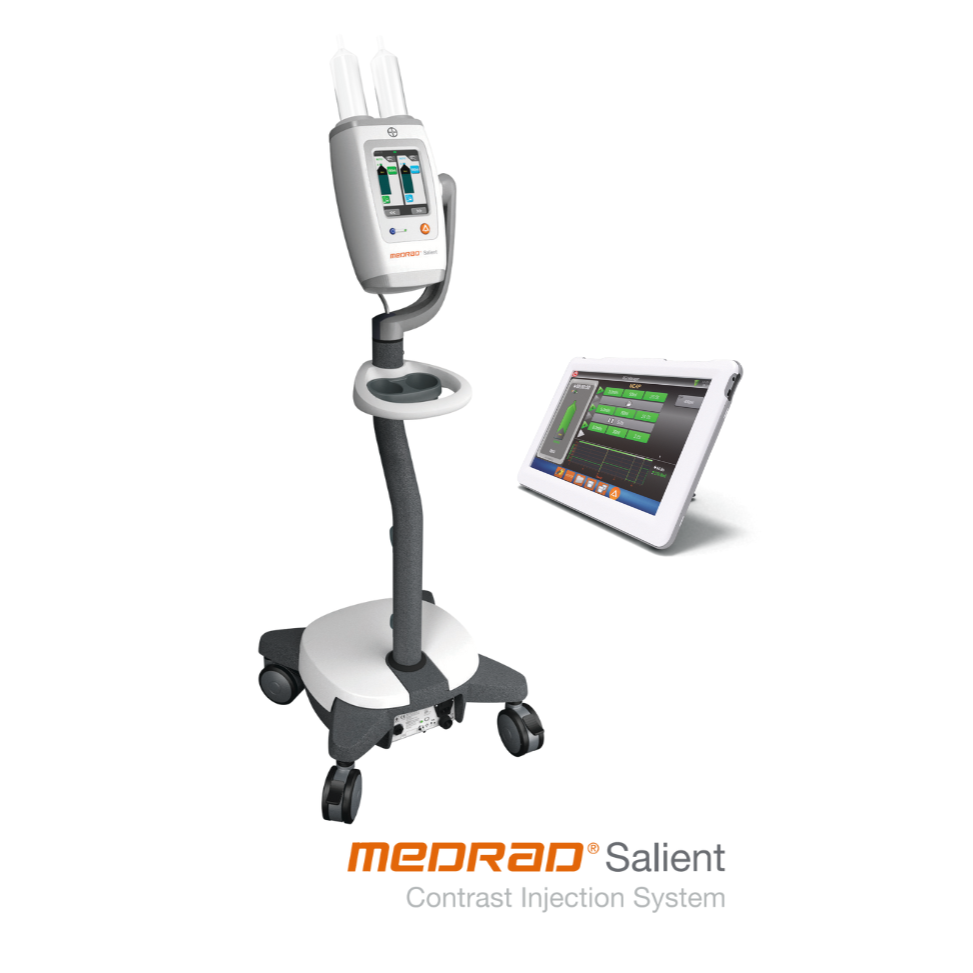

MEDRAD Salient Contrast Injector Dual with Wireless RCU
Product Description
I/ General Configuration
• Main unit and standard accessories: 01 system
• Dual head and accessories: 01 unit
• Syringe warmer: 01 unit
• Wireless control button: 01 unit
• Wireless control display: 01 unit
• User manual in English and Vietnamese: 01 set
• Contrast injector syringes 190mL: 03 uint
• Low-pressure T-connector tubing sets: 03 uint
II/ Technical Specifications
Specifications:
• Dual-syringe contrast injector, mounted on a mobile cart, equipped with a remote control, operates on independent battery power or main power supply
• The piston will automatically dock with the plunger and then stop when syringes are installed
• Automatic or manual filling, maximum flowrate: ≥10 mL/sec
• Safety limit function, maximum pressure limit: ≥300 psi
• Adjustable injection volume, minimum injection volume: ≥1 mL up to maximum volume, 1 mL increments
• Programmable delay time between phases: ≥900 seconds, 0.1 second increments
• Multi-phase programming capability, up to ≥6 phases
• Integrated contrast heat maintainer
• Safety alert and alarm functions
