MEDRAD® Avanta is the next-generation contrast injector featuring a dual-line design for real-time control of contrast and saline.
Precise injection rates achieved through manual control, with multiple software solutions for remote technical support.
Hãng sản xuất:

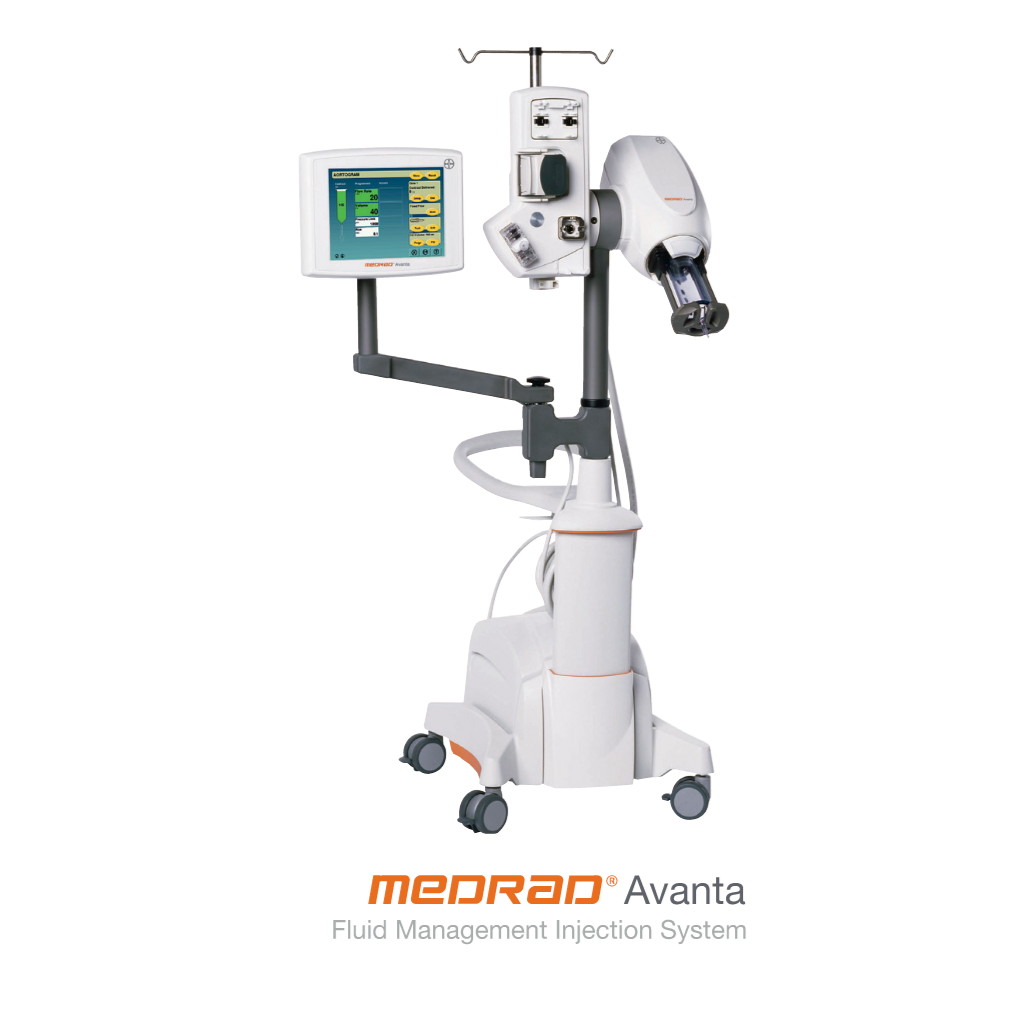

MEDRAD Avanta Fluid Management Injection System
Product Description
I/ General Configuration
* Main unit and standard accessories: 01 unit
* Single-syringe injector head and accessories: 01 system
* Control display: 01 unit
* Saline distribution module: 01 unit
* Product packaging information: 01 unit
* Power cable: 01 unit
* User and maintenance manual (English): 01 unit
* 150 mL contrast syringe kit with tubing for contrast and saline: 03 sets
* Patient connection tubing with invasive blood pressure monitoring: 03 sets
II/ Technical Specifications
MEDRAD® Avanta is designed for use in X-ray angiography environments by delivering contrast media into the vascular system and saline at various volumes and flow rates. It is intended for diagnostic and interventional angiographic procedures performed in cardiology, radiology, and vascular surgery.
* Equipped with sensors for air bubble detection in contrast and saline lines
* Equipped with sensors for detecting remaining volume of contrast and saline
* Pressure setting range: ≤300 – ≥1200 PSI, 1 PSI increments
* Injection volume setting: ≤1 – ≥150 mL, 1 mL increments
* Delay time before or after injection: ≤0.0 – ≥90.0 seconds, 0.1 second increments
* Number of injection protocols: ≥40
