Mark 7 Arterion® is the next-generation contrast injector in the “Mark” series, featuring VFlow™ design that enables flexible manual control of injection flow.
Color touchscreen with an intuitive interface, offering multiple software solutions for remote technical support.
Hãng sản xuất:

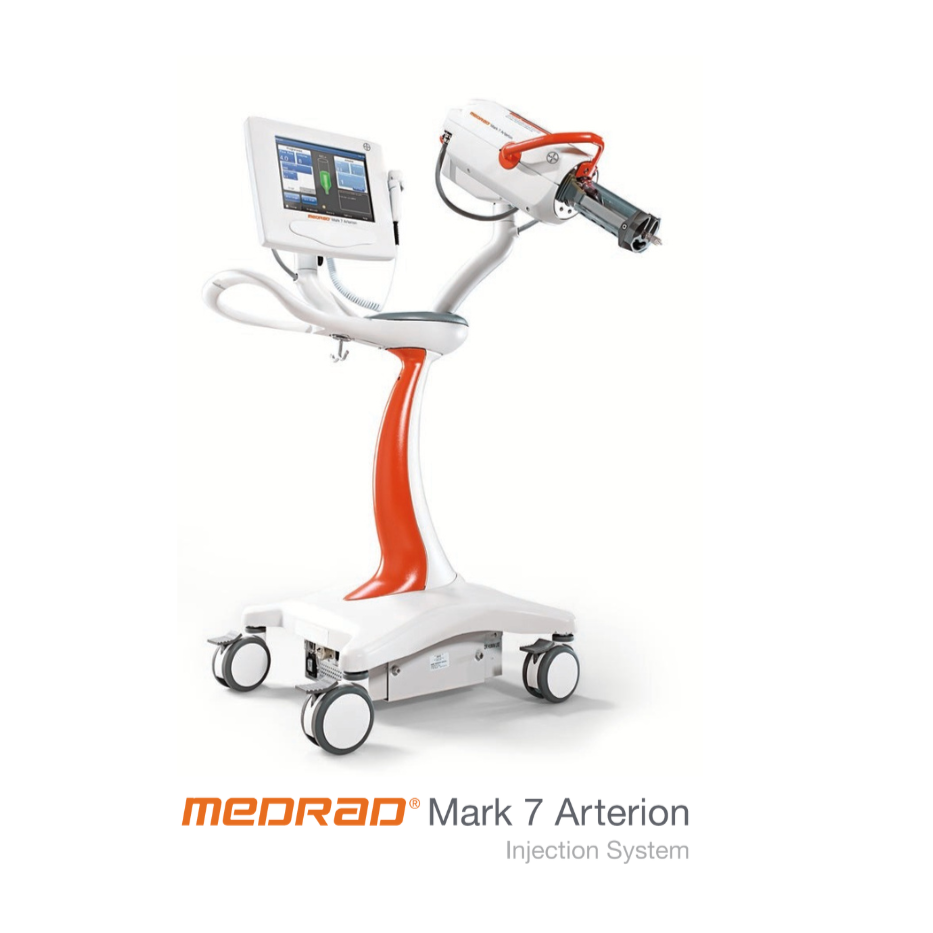

MEDRAD Mark 7 Arterion Injection System
Product Description
I/ General Configuration
• Main unit and standard accessories: 01 system
• Single-syringe injector head: 01 unit
• Control display: 01 unit
• Pedestal: 01 unit (OR ceiling-mounted arm: 01 unit)
• Power supply unit: 01 unit
• Heating unit: 01 unit
• Manual control switch: 01 unit
• User and maintenance manuals (English & Vietnamese): 01 unit
• 150 mL contrast syringe kits with quick-fill tubing: 03 unit
II/ Technical Specifications
• Specialized injector for contrast media and flushing solutions in angiography procedures
• Flow Rate (Fixed)
+ 0.1–45.0 ml/s in 0.1 ml/s increments
+ 0.1–59.9 ml/m in 0.1 ml/m increments
• Adjustable injection volume: from 1 mL up to maximum
• Display of remaining volume in syringe
• Contains a sensor that monitors the head’s position
• Automatic filling based on preset volume
• Automatic piston retraction when syringe is removed
• One-handed connection design for syringe and tubing installation
• Integrated syringe guard and downward rotation of injector head before injection
• Pressure limit setting (PSI): ≤100 up to maximum ≥1200 PSI, adjustment step: 1 PSI
• Number of programmable protocols: ≥39 programs
